Portable EV.2 Charger 3.6kW Type 1/2

Short Description:

The most common socket in Europe is the Schuko (two pins). This electric car charger is suitable for almost every home/garage in Europe and can charge your vehicle with a speed of up to 3.6 kW per hour.This EV charger has CE and TÜV certification ensuring its safe use. The current can be changed by a button to 8A/10A/13A/16A. Once you select the current, the station will automatically set the same current for your next charge. This portable charger is equipped with overcurrent protection, overvoltage protection, under-voltage protection, leakage protection, overheating protection, and waterpr···


  • Price: ¥ 1,338.33 CNY
  • Type: Portable Chargers
  • Views: 2431
  • Author: 超级管理员
  • Date: 2024-09-28 23:41:12

Product Details


The most common socket in Europe is the Schuko (two pins). This electric car charger is suitable for almost every home/garage in Europe and can charge your vehicle with a speed of up to 3.6 kW per hour.

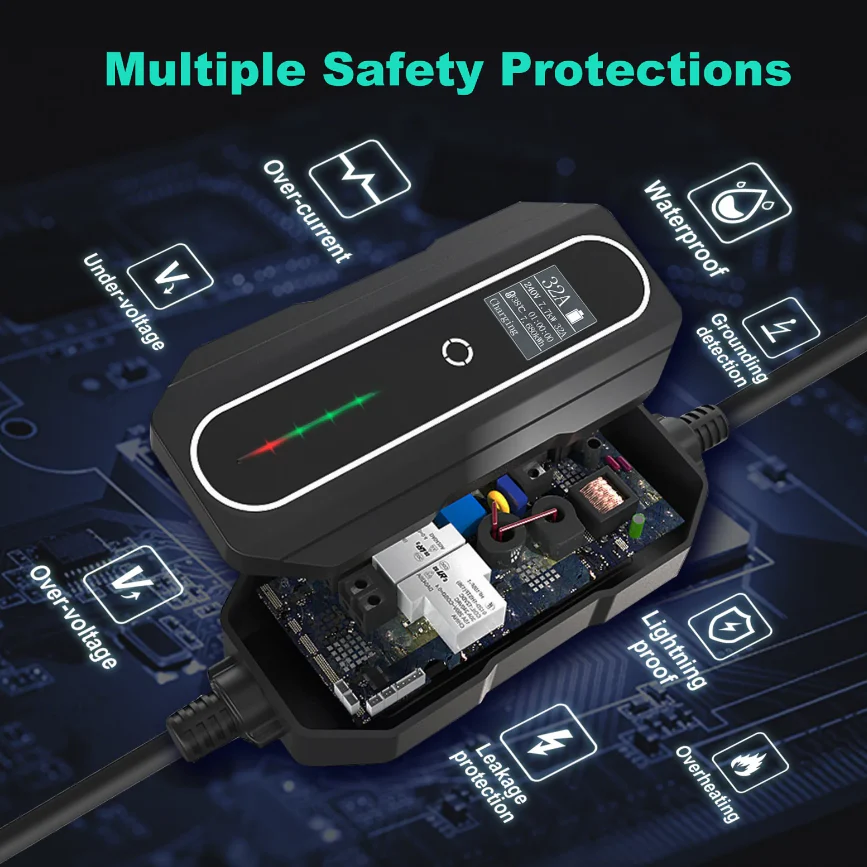

This EV charger has CE and TÜV certification ensuring its safe use. The current can be changed by a button to 8A/10A/13A/16A. Once you select the current, the station will automatically set the same current for your next charge. This portable charger is equipped with overcurrent protection, overvoltage protection, under-voltage protection, leakage protection, overheating protection, and waterproof protection.

If the temperature of any component reaches over 85°C the charging process will be interrupted instantly. Made of durable materials the home charger will last 10 000 plug-ins, falls from heights of 1m, and pressure of up to 2 tones. Our EV charger is equipped with an LED display providing information about the current voltage, charge, selected current, charging time, charging speed, and charged power in real-time.

Specifications:

Materials: Thermoplastic, Copper

Weight: 2.4kg

Wire Gauge: 3G2.5mm² + 2×0.5mm²

Current: 8/10/13/16A

Input power: 110–250V AC

Output power: 3.6kW

Insulation resistance: > 1000MD (DC500V)

Terminal temperature rise:< 50K

Housing Fire Rating: UL94V-0
